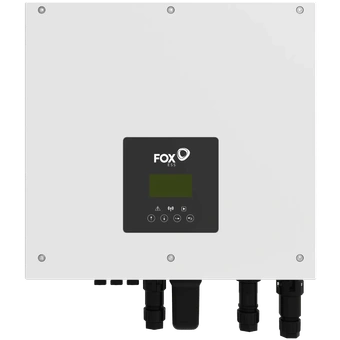

Harness the power of the sun day and night with the ground-breaking range of Hybrid & AC inverters from FOX. Full of advanced features and compatible with our very own range of high-voltage batteries, the hybrid range from FOX. is a new class of Inverter.
| Inverter Type | Hybrid |
| MPPT | 2 |
| Inverter Power | 3.7 kW |
| Number of phases | 1 |
| Series Name | H1&AC1 |
| Series AC Power Range (kW) | 3.3-6.6 |
| Model Name | H1-3.7-E |
| Product Warranty (Years) | 10 |
| Maximum DC Power (kW) | 4.68 |
| Max. DC Voltage (V) | 600 |
| Max. DC Current (A) | 26 |
| Strings per single MPPT | 1 |
| DC Inputs | 2 |
| Maximum AC Power (kW) | 7.68 |
| Nominal AC Voltage (V) | 220/230/240 |
| Maximum AC Current (A) | 17.6 |
| Nominal AC Current (A) | 16 |
| Frequency (Hz) | 50/60 |
| Power Factor | 1 (Adjustable from 0.8 leading to 0.8 lagging) |
| Maximum Efficiency (%) | 97.8 |
| Euro Efficiency (%) | 97 |
| Operating Temperature Range (°C) | -25 ~ +60 |
| Protection Class | IP65 |
| Display | lCD |
| Protection Features | Anti Island Protection(ENS), Short Circuit Protection, Overvoltage Protection, Overcurrent Protection, Residual Current Device (RCD), Reverse Polarity Protection, Isolation Monitoring |
