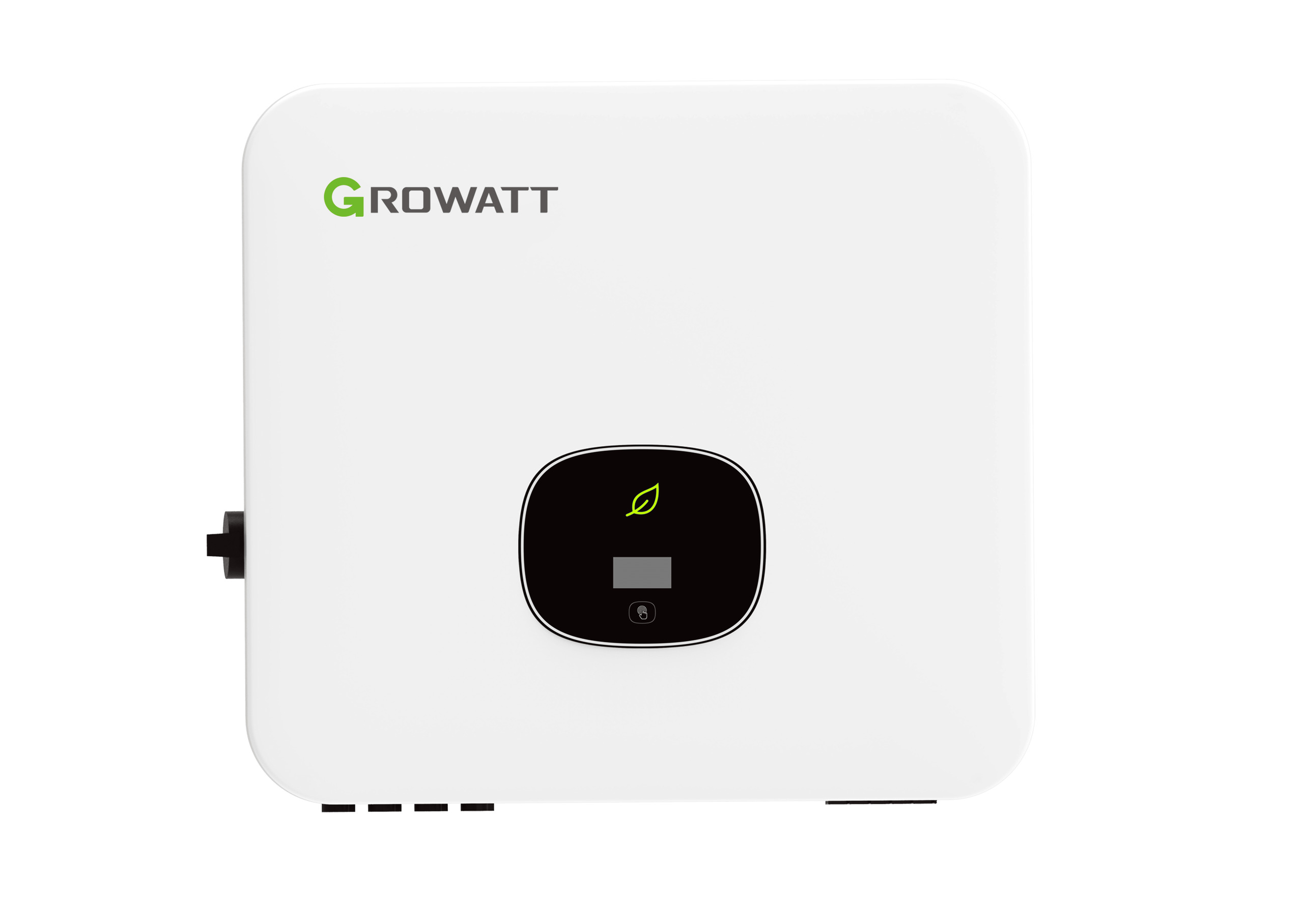

Growatt MOD 5000TL3-XH BP

Name: Growatt MOD 5000TL3-XH BP
Brand: Growatt
SKU: 20522
Availability: InStock

Categorie: Omvormers Merk: Growatt

00 31 20 561 60 47

info@powersolar.store

Shipping & Returns

Inverter Type	Hybrid
MPPT	2
Inverter Power	5 kW
Number of phases	3

Product details

Series Name	MOD3-10KTL3-XH (Backup)
Series AC Power Range (kW)	3-10
Model Name	MOD5000TL3-XH Backup
Product Warranty (Years)	10
Maximum DC Power (kW)	10
Max. DC Voltage (V)	1100
Max. DC Current (A)	16×2
Strings per single MPPT	1
Maximum AC Power (kW)	5.5
Output AC Voltage Range (V)	340-440
Nominal AC Voltage (V)	220/380, 230/400
Maximum AC Current (A)	8.3
Frequency Range (Hz)	45-55/55-65
Frequency (Hz)	50/60
Maximum Efficiency (%)	98.3
Euro Efficiency (%)	97.5
Operating Temperature Range (°C)	-25-60
Protection Class	IP66
Display	OLED+LED
Protection Features	Internal Overvoltage Protection DC Insulation Rsistance Detection Grid Monitoring GFCI Monitoring DCI Monitoring AC Short Circuit Current Protection AC Grounding Detection DC Surge Protection AC Surge Protection Anti-islanding Protection AFCI Protection

Measurements

Height (mm)	387
Width (mm)	425
Depth (mm)	147
Weight (kg)	12.5

Beschrijving

Growatt MOD 5000TL3-XH(BP)

The MOD TL3-XH-BP is Growatt’s newest generation of three-phase hybrid inverters. Compact, lightweight, and stylishly designed, it is easy for one person to install. Fully compatible with the Growatt APX battery storage system, this inverter offers a flexible and future-proof energy solution.

Perfect for residential three-phase installations, the Growatt MOD series combines performance, efficiency, and convenience. Use our configurator to find the right Growatt inverter for your PV system.

Three-phase system (MOD with AFCI)

Inverters in the MOD series feature two MPPT trackers and deliver high efficiency levels of up to 98.6%. Each unit includes AFCI (arc fault protection) as standard, ensuring maximum safety. The transformerless, fanless design keeps operation extremely quiet and maintenance low. Check the datasheet for detailed specifications.

Smart monitoring and energy management

All Growatt inverters can be paired with the Growatt Smart Meter to measure and limit both energy consumption and solar production. They are also compatible with the following monitoring modules:
