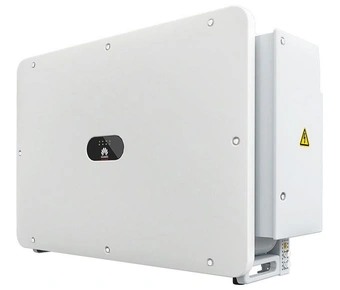

10 MPP Trackers. 98.8% (@480V) Max. Efficiency String-level Management Smart I-V Curve Diagnosis Supported MBUS Supported Support AFCI & Smart String Level Disconnector. Surge Arresters for DC & AC IP66 Protection
| Inverter Type | On-grid |
| MPPT | 10 |
| Inverter Power | 100 kW |
| Number of phases | 3 |
| Series Name | SUN2000-100KTL-M2 |
| Series AC Power Range (kW) | 110 |
| Model Name | SUN2000-100KTL-M2 400V |
| Product Warranty (Years) | 5 |
| Maximum DC Power (kW) | 110 |
| Max. DC Voltage (V) | 1000 |
| Max. DC Current (A) | 20 |
| Strings per single MPPT | 2 |
| DC Inputs | 20 |
| Maximum AC Power (kW) | 110 |
| Nominal AC Voltage (V) | 380/400/480 |
| Maximum AC Current (A) | 160.4/133.7 |
| Nominal AC Current (A) | 144.4/120.3 |
| Frequency (Hz) | 50/60 |
| Power Factor | 0.8 leading … 0.8 lagging |
| Maximum Efficiency (%) | 98.6/98.8 |
| Euro Efficiency (%) | 98.4/98.6 |
| Operating Temperature Range (°C) | -25 ~ +60 |
| Protection Class | IP65 |
| Display | LED |
| Protection Features | Input-side Disconnection Device, Anti-islanding Protection, AC Overcurrent Protection, DC Reverse-polarity Protection, PV-array String Fault Monitoring, DC Surge Arrester Type II, AC Surge Arrester Type II, DC Insulation Resistance Detection, Residual Current Monitoring Unit, Arc Fault Protection, Smart String Level Disconnector |
