Active Safety AI Powered Active Arcing Protection Higher Yields Up to 30% More Energy with Optimizer 2x POWER Battery Ready 5KW AC Output plus 5KW Battery Charge

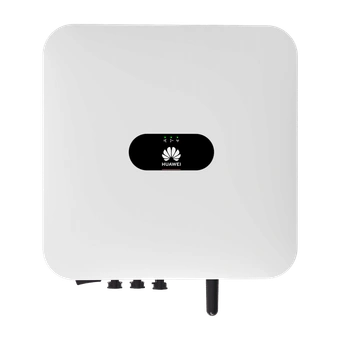

Huawei SUN2000-3.68KTL-L1 SUN2000-2/3/3.68/4/4.6/5/6KTL-L1
Out of stock
| Inverter Type | Hybrid |
| MPPT | 2 |
| Inverter Power | 3.68 kW |
| Number of phases | 1 |
| Series Name | SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 |
| Series AC Power Range (kW) | 2-6 |
| Model Name | SUN2000-3.68KTL-L1 |
| Product Warranty (Years) | 10 |
| Maximum DC Power (kW) | 5.52 |
| Max. DC Voltage (V) | 1000 |
| Max. DC Current (A) | 12.5 |
| Strings per single MPPT | 1 |
| DC Inputs | 2 |
| Max AC Power (kW) | 3.68 |
| Nominal AC Voltage (V) | 220/230/240 |
| Maximum AC Current (A) | 16 |
| Frequency(Hz) | 50/60 |
| Power Factor | 0.8 leading … 0.8 lagging |
| Max Efficiency (%) | 98.4 |
| Euro Efficiency (%) | 97.3 |
| Operating Temperature Range (°C). | -25 ~ +60 |
| Protection Class | IP65 |
| Display | LED |
| Protection Features | Anti-Islanding protection, DC reverse polarity protection, Insulation monitoring, DC surge protection, AC surge protection, Residual current monitoring, AC overcurrent protection, AC short-circuit protection, AC overvoltage protection, Over-heat protection, Arc fault protection, Battery reverse charging from grid |
